CATIA
Computer-aided three-dimensional interactive application…
- 10+ Modules
- 2 Months

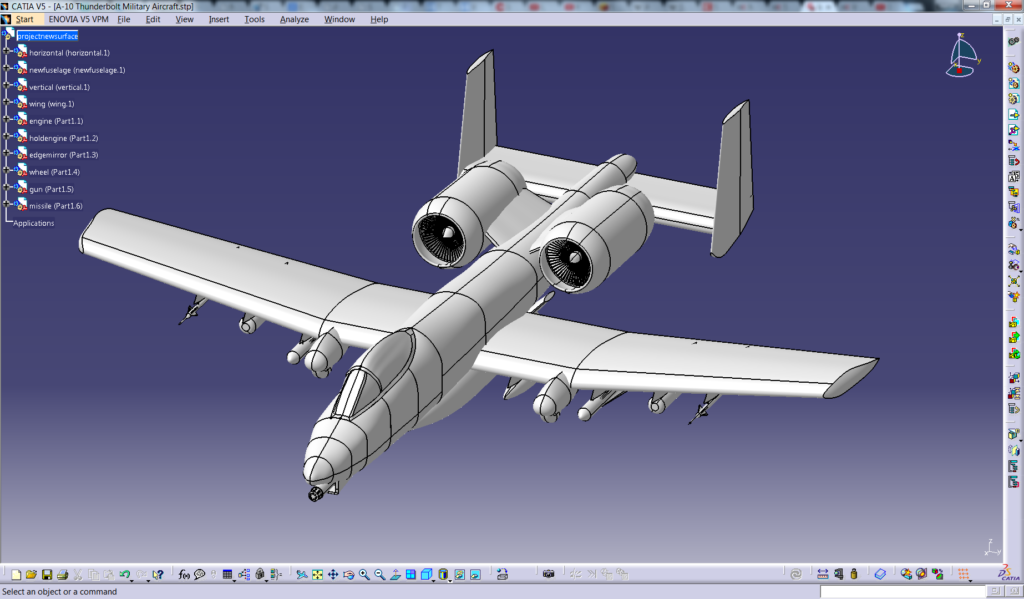

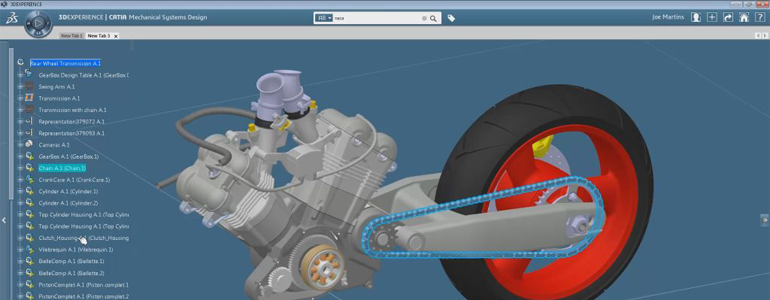

CATIA ( Computer Aided Three- dimensional Interactive Application). It supports multiple stages of product development (CAx), from conceptualization, design(CAD), manufacturing (CAM), and engineering (CAE). CATIA provides a suite of surfacing, reverse engineering ,and visualization solutions to create, modify, and validate complex innovative shapes. It enables the creation of 3D parts, from 3D sketches, sheet metal, composites, molded, forged or tooling parts up to the definition of mechanical assemblies.
It facilities the design of electronic, electrical as well as distributed systems such as fluid and fluid and HVAC systems, all the way to the production of documentation for manufacturing.
APPLICATION OF CATIA
Surfacing  & shape design, mechanical engineering, equipment and systems engineering.
COURSE CONTENTS
-CATIA User Interface
-Parametric Modeling
-Manipulating Objects
-Creating Sketches
-Sketched feature
-Transformation features
-Dress up features
-Modifying Parts
-Design table and external file management
-Assembling components
-Positioning components susing Constraints
-Editing parts & Exploding the assembly
-Wire frame and surface design
-Data exchange
-Project
Individual Classes
- We will finish this course in 2 Months.
- Average Class Duration is 1:30 hours.
- We have both Theory and Practical Classes each day.
- Systems will be provided to you with Proper net connection.
